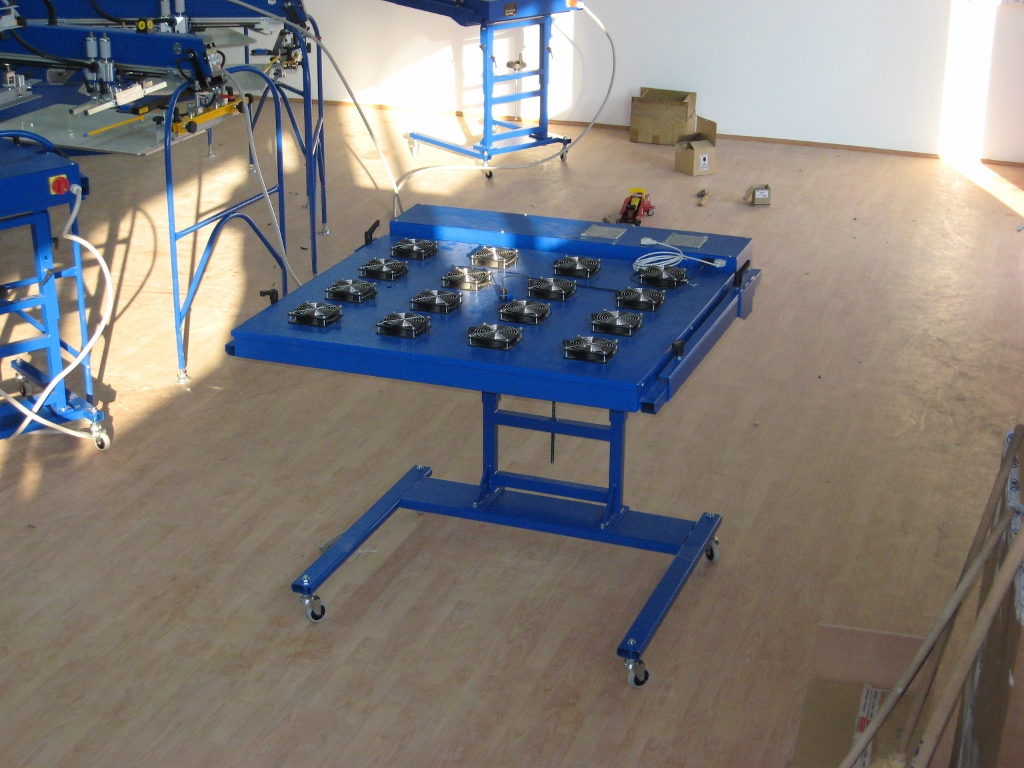

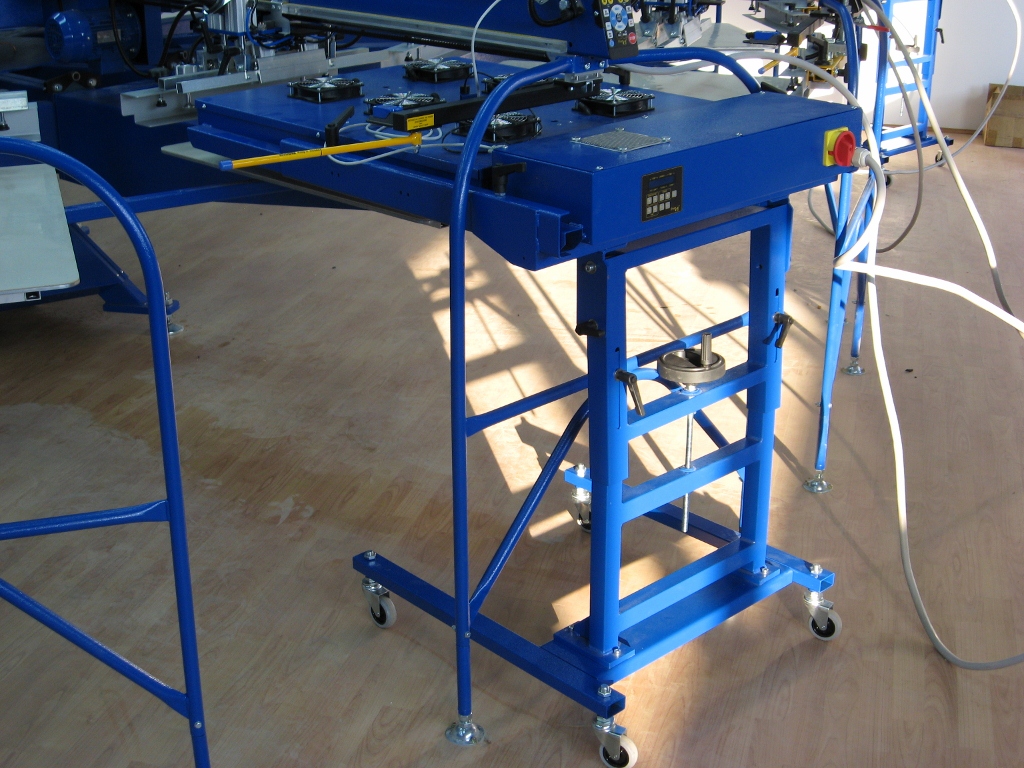

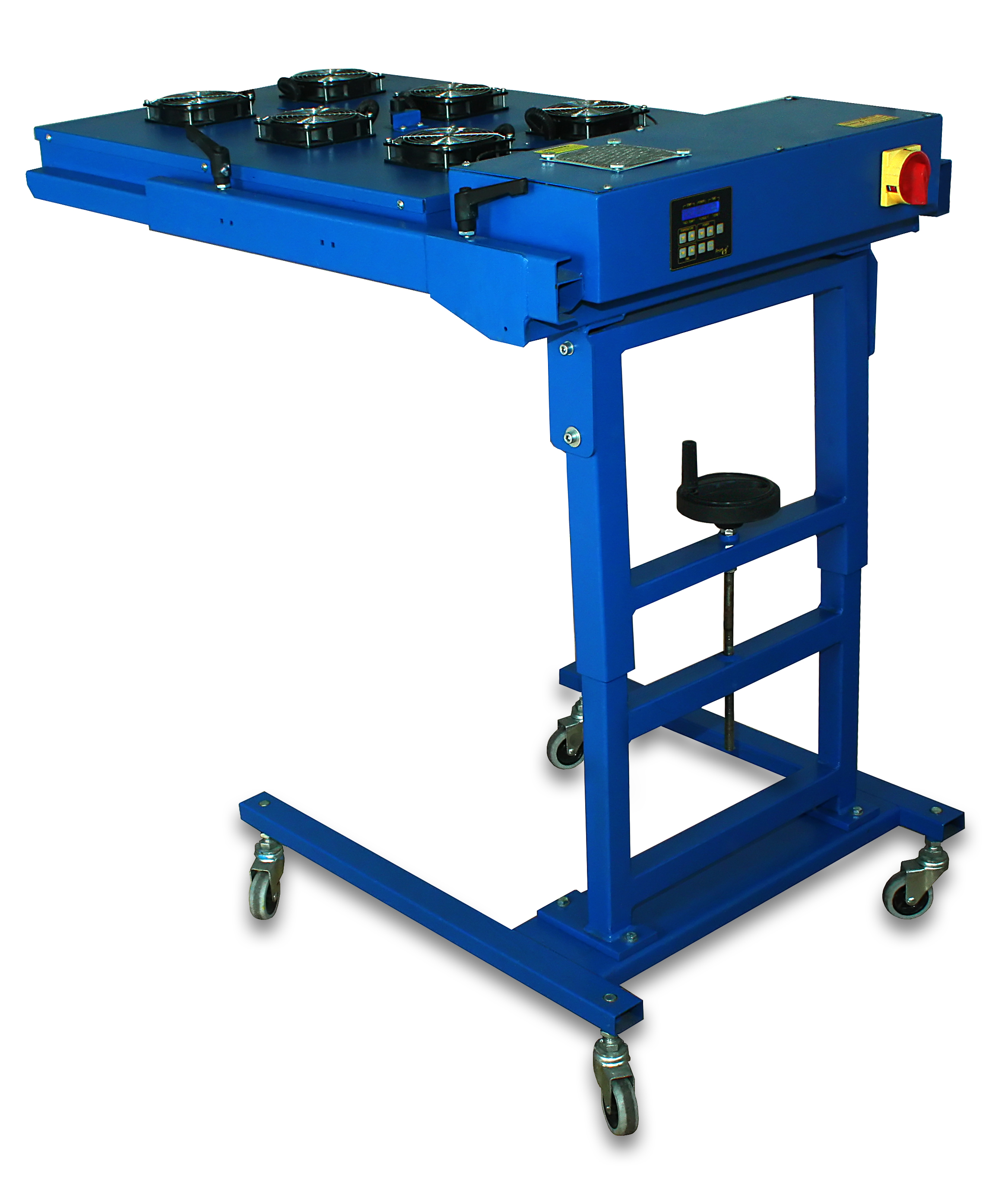

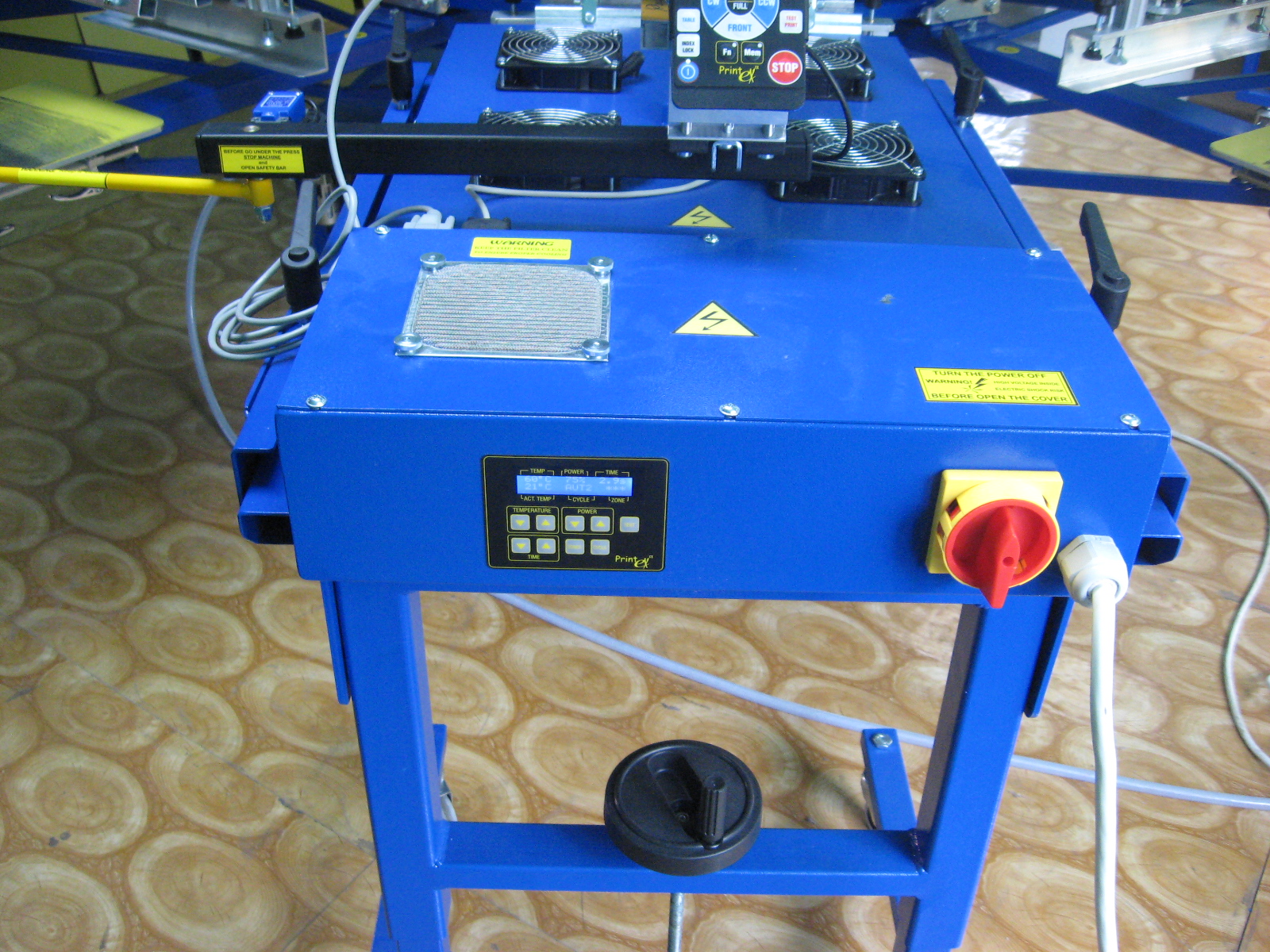

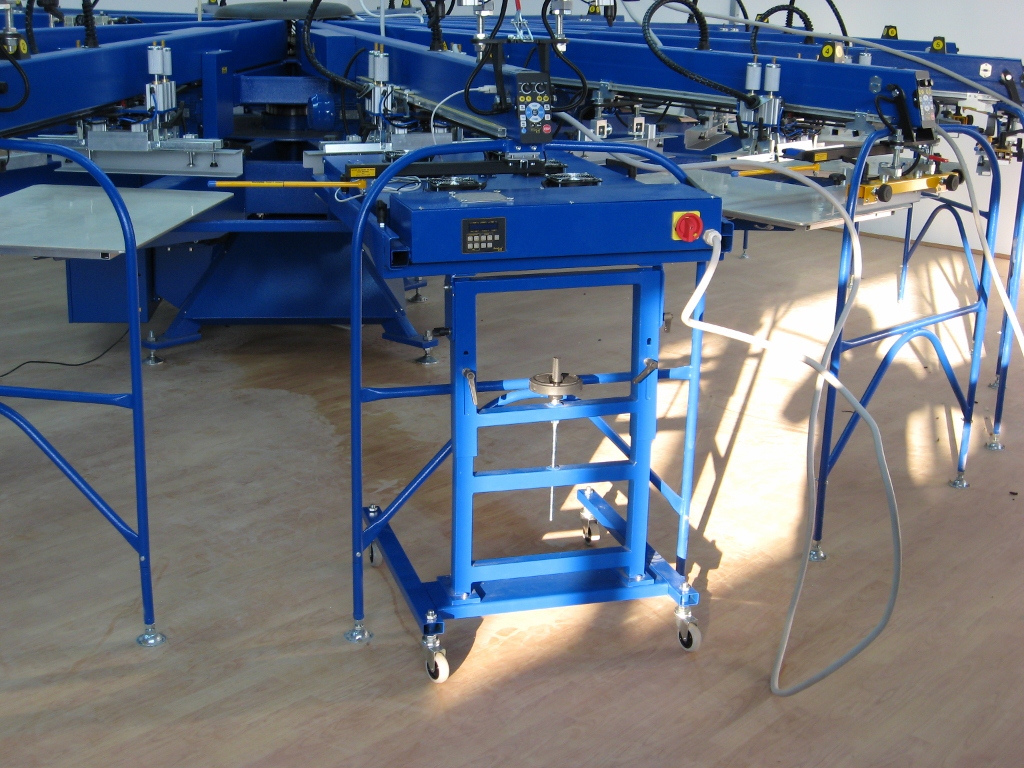

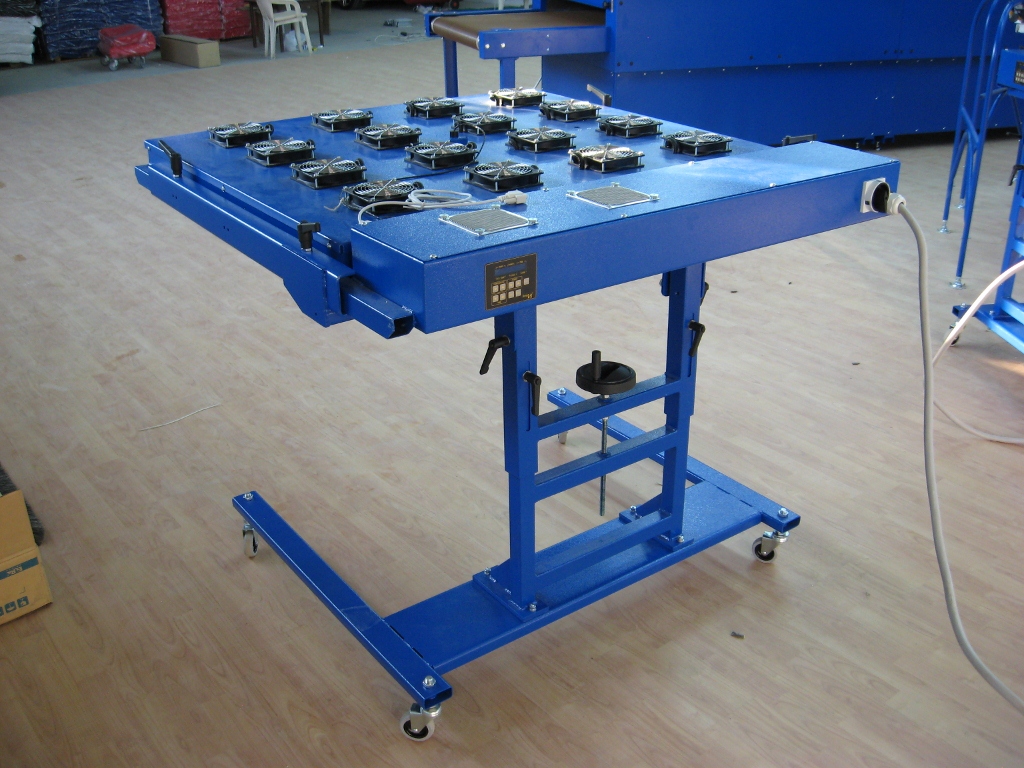

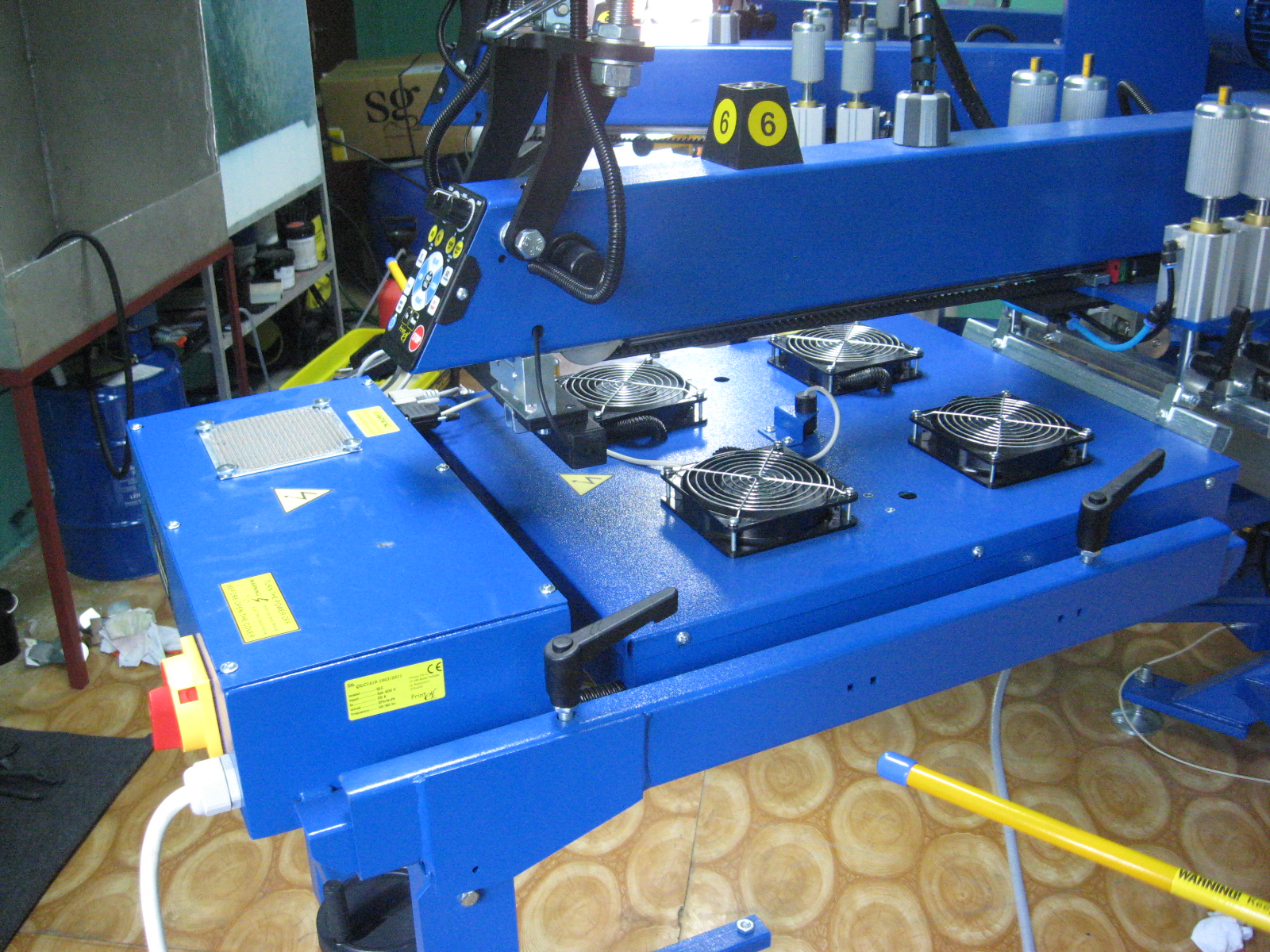

CLH series FLASH



IR FLASHES CLH series





MODEL	HEAT AREA	HEATING ZONES	HEATING ELEMENT	POWER and TEMPERATURE CONTROL	PREHEAT FUNCTION	TIME CONTROL	PHOTOSENS. & STAND
CLH 1318	33 x 46 cm 9 kW	3 Horizontal, all possible combination of working	QUARTZ TUBE 9 pcs	Range 5-100%, power line synchronization, can be triggered from panel or automatic machine, Temperature control	Compensates the start-up time, possibility to set step characteristic	From Panel or automatic machine	INCLUDED
CLH 1618	41 x 46 cm 12 kW	3 Vertical, all possible combination of working	QUARTZ TUBE 8 pcs
CLH 2020 pic 1, pic 2	51 x 51 cm 13.5 kW	3 Horizontal, all possible combination of working	QUARTZ TUBE 9 pcs
CLH 2024	51 x 60 cm 18 kW	3 Horizontal, all possible combination of working	QUARTZ TUBE 12 pcs
CLH 2030	51 x 70 cm 21 kW	3 Horizontal, all possible combination of working	QUARTZ TUBE 14 pcs
CLH 2432 pic 1, pic 2,	61 x 81 cm 22.5 kW	3 Horizontal, all possible combination of working	QUARTZ TUBE 15 pcs

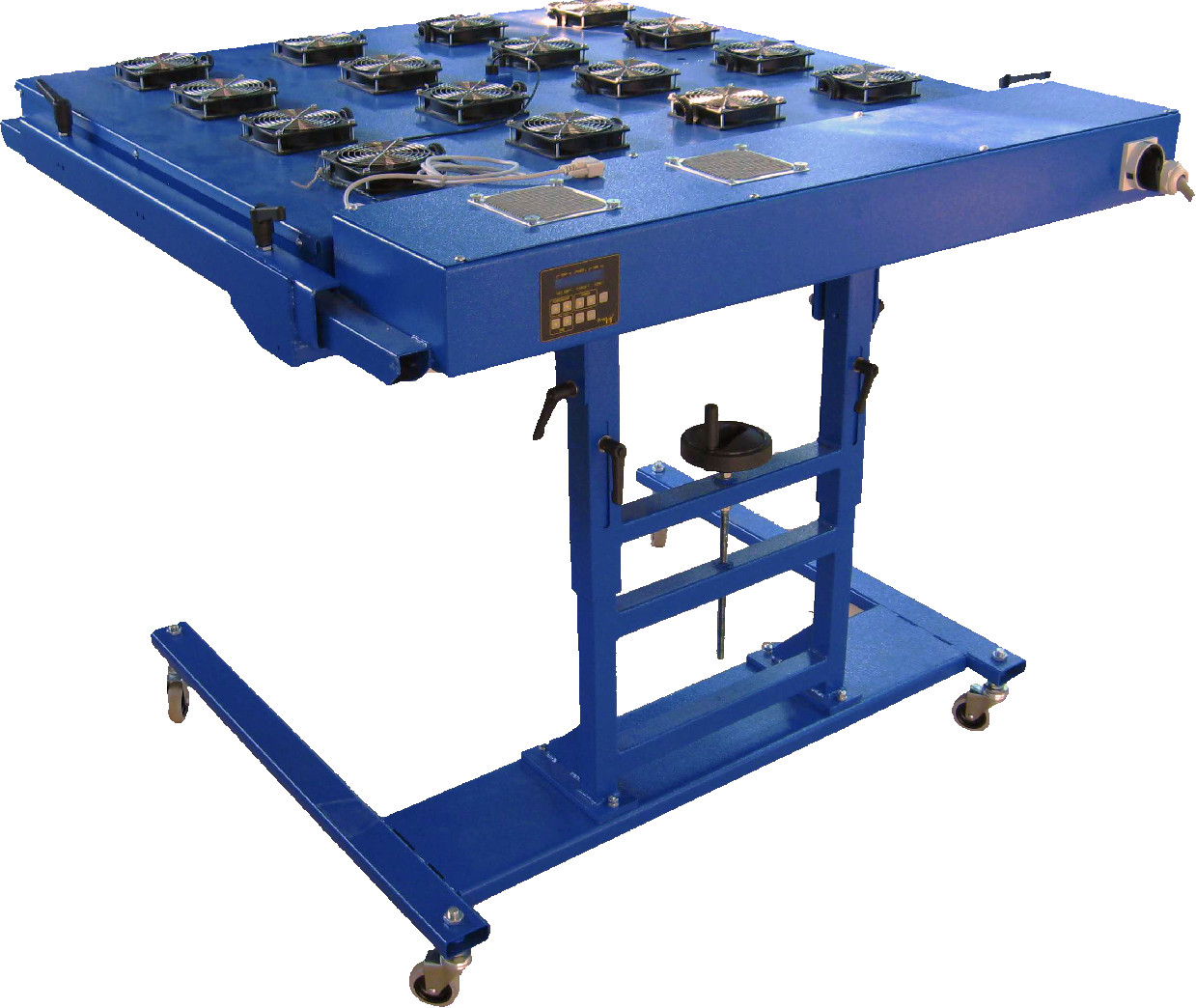

CLH 4336 pic 1, pic 2	110 x 91 cm 40 kW	3 Vertical, all possible combination of working	QUARTZ TUBE 20 pcs	Smart Power Management System

 FEATURES & CHARACTERISTIC

• ELECTRONIC POWER CONTROL IN RANGE 100-5% with 5% INCREMENTS
• TEMPERTURE CONTROL, 3 MODES OF CONTROL
• TIMER CONTROL or OUTSIDE TRIGGER CONTROL
• 3 ZONES ALL POSSIBLE COMBINATION ON / OFF
• SMART POWER MANAGEMENT SYSTEM (OPTIONAL)
