UV BRIDGE
The UV BRIDGE CONSISTS OF FOLOWING:

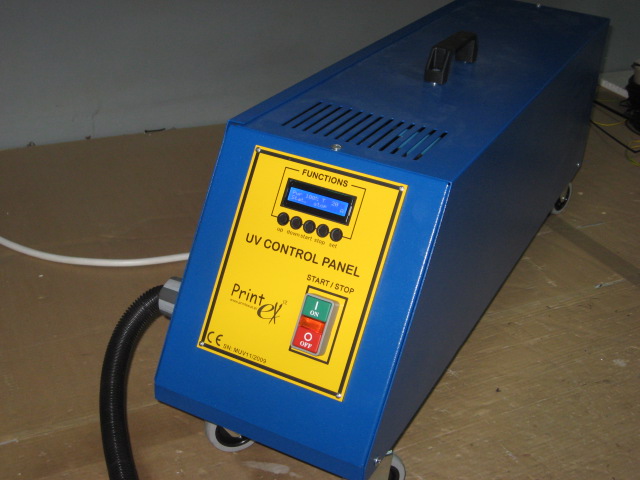

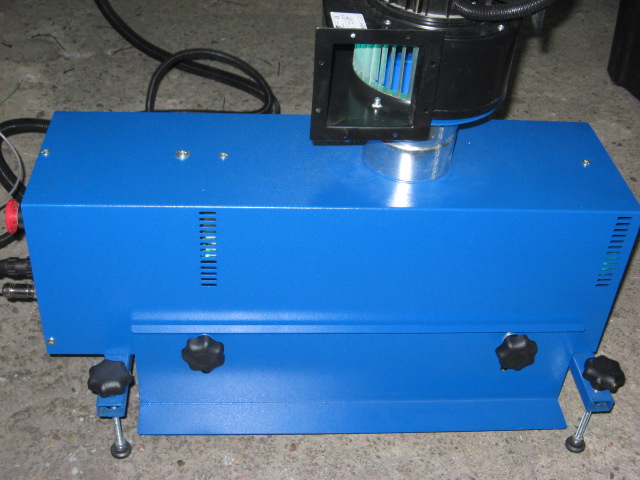

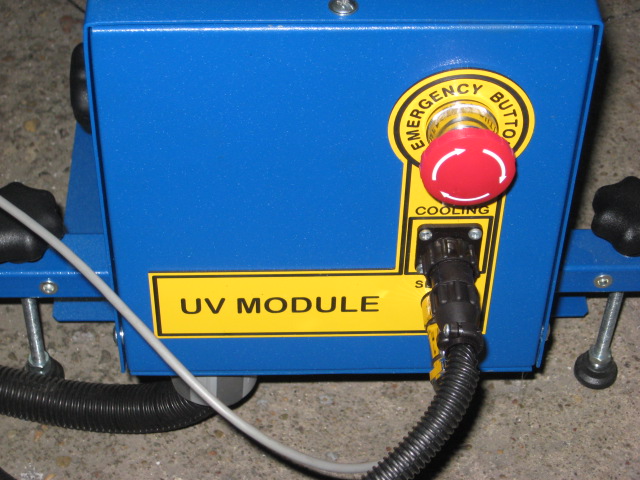

UV POWER SUPPLY UV MODULE UV COOLING FAN
FEATURES & CHARACTERISTIC

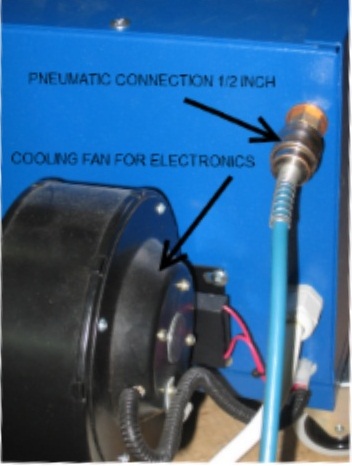

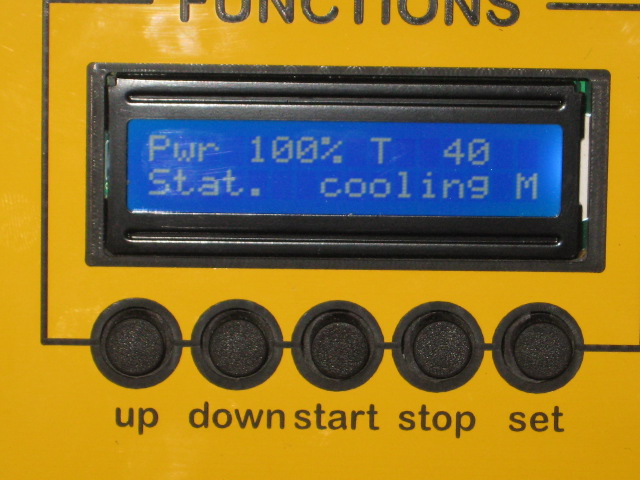

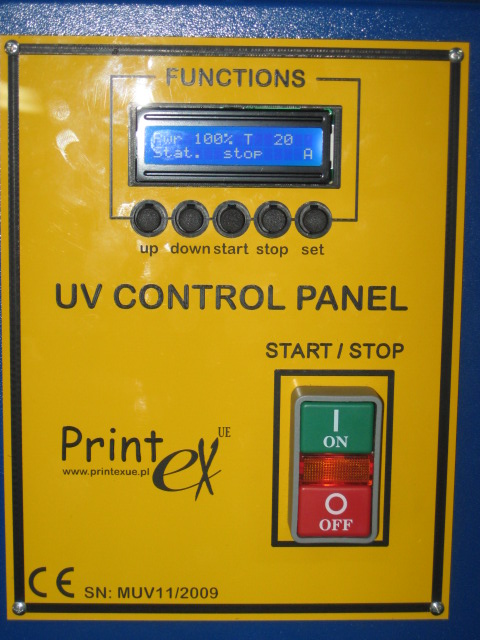

UV CONTROL PANEL UV SETTINGS BACK OF UV POWER SUPPLY
- ELECTRONIC POWER CONTROL IN RANGE 100-50% with 5% INCREMENTS
- UV LAMP PARAMETERS MONITORING
- ADAPTATIVE COOLING AND OZONE EXHAUST
- UV LAMP SHUTTERING SYSTEM (PNEUMATICLY DRIVEN)
- EXTERNAL PHOTOSENSOR FOR SHUTTERS CONTROL, START/STAND BY CONTROL
AVALIABLE MODELS:
UVB-24 24" lamp length, 7.2 KW 400 VAC 3 PH, CONVEYOR BELT APPLICATION DRAWING
UVB-30 30" lamp length, 9.2 KW 400 VAC 3 PH, CONVEYOR BELT APPLICATION DRAWING
UVB-38 38" lamp length, 11.2 KW 400 VAC 3 PH, CONVEYOR BELT APPLICATION DRAWING
UVB-48 48" lamp length, 14.6 KW 400 VAC 3 PH, CONVEYOR BELT APPLICATION DRAWING
