UVC COMBO TUNEL DRYERS (UV+IR+HOT AIR)

Print Ask

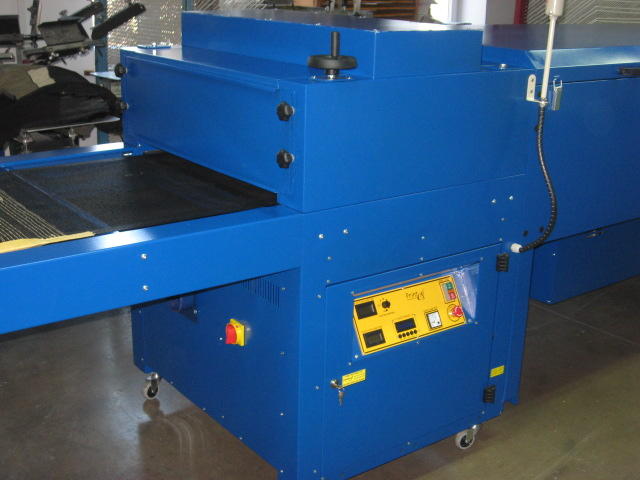

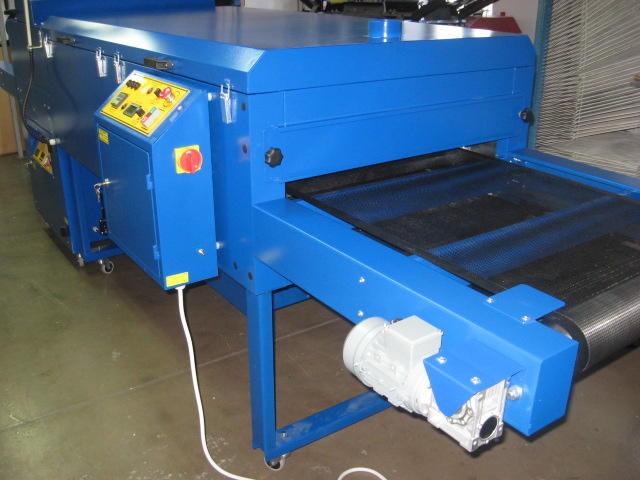

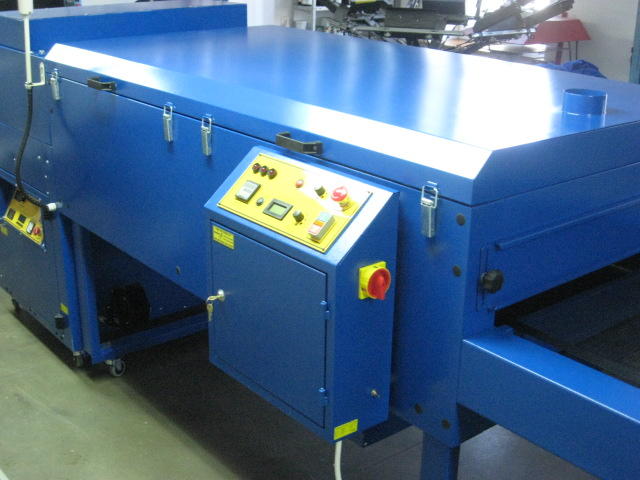

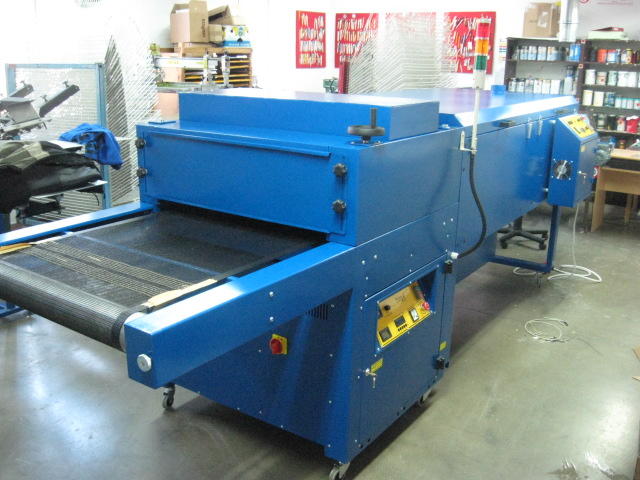

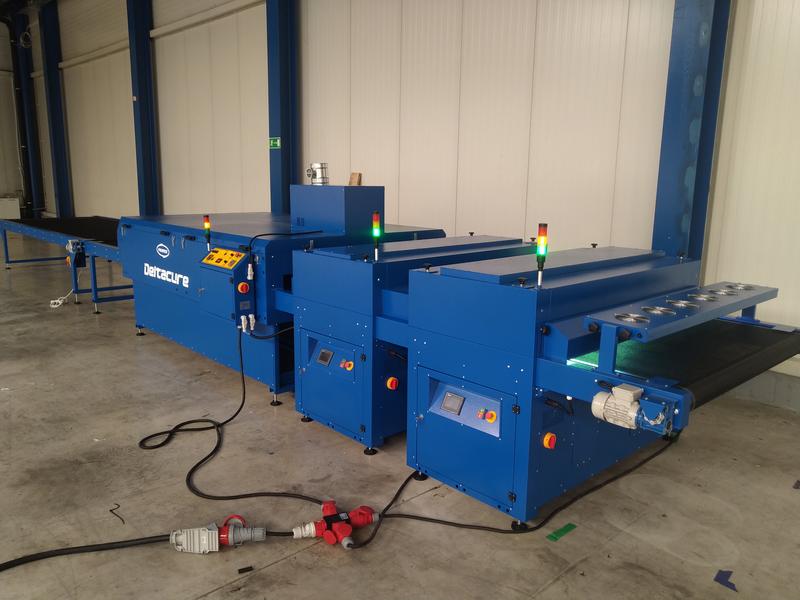

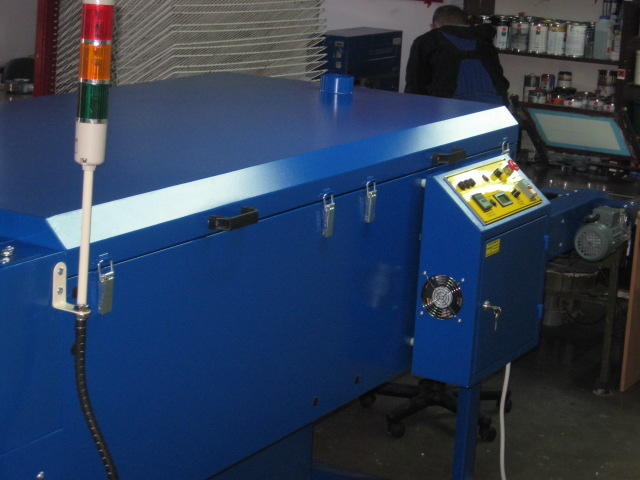

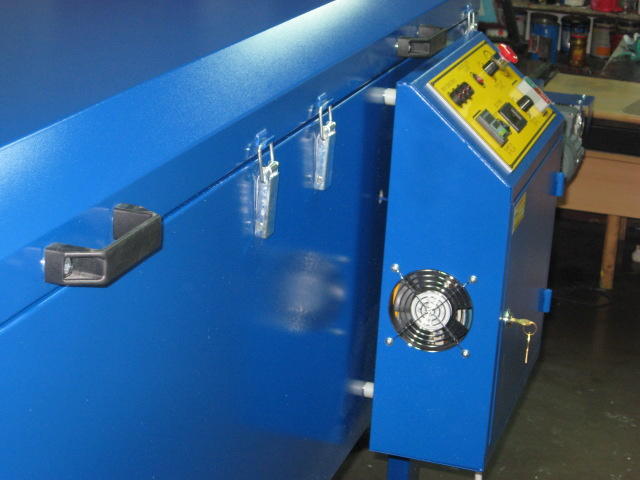

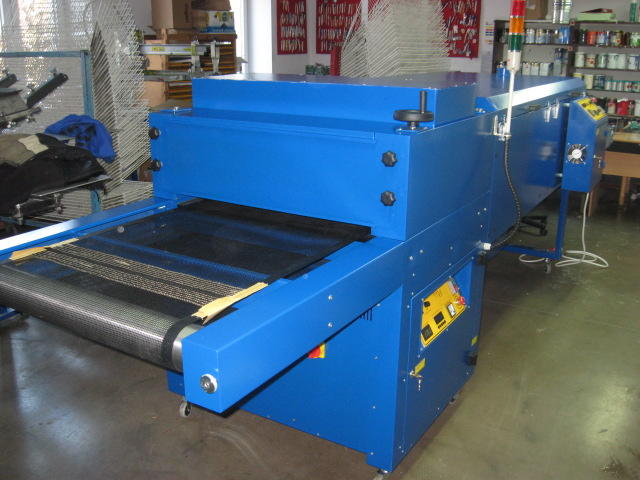

UVC - series UV Combo dryers are segmental conveyor dryer used for IR curing, HOT air curing and UV polimerisation process.

UVC tunnel consits of HEAT CHAMBER and UV CHAMBER. It gives flexibility of curing method. UV SECTION:

ELECTRONIC POWER CONTROL IN RANGE 100-50% with 5% INCREMENTS
UV LAMP PARAMETERS MONITORING
ADAPTATIVE COOLING AND OZONE EXHAUST
UV LAMP SHUTTERING SYSTEM (PNEUMATICLY DRIVEN) OPTIONAL
ADJUSTABLE LAMP'S HIGHT OVER THE BELT UV RAY FOCUSING

IR&HOT AIR SECTION:

CERAMIC HEATERS FOR EFFICIENT IR RADIATION
CERAMIC FAILURE DETECTION
HEATERS POSITIONED IN AIR DUCT FOR SIMPLE IR to HOT AIR RATIO CHANGE
ADJUSTABLE AIR FLOW FOR CONVECTION HEATING
TEMPERATURE ISOLATED BLOWER MOTOR

We offer following UVC dryers models: UVC-24" UV SECTION: 7.2 KW 400 VAC 3 PH, IR&HOT AIR SECTION: 8 - 10 kW UVC-30" UV SECTION: 9.2 KW 400 VAC 3 PH, IR&HOT AIR SECTION: 10 - 12 kW UVC-38" UV SECTION: 12 KW 400 VAC 3 PH, IR&HOT AIR SECTION: 13.5 - 15.6 kW UVC-48" UV SECTION: 14 kW 400 VAC 3 PH, IR&HOT AIR SECTION: 16 - 20 kW
