SPECTRUM-SL - automatic press

Catalog Print Ask

Spectrum-SL is a evlolutionary version of well known SPECTRUM-S. It comes in 2 models:

10 stations 8 colors
12 stations 10 colors
14 stations 12 colors

It has improved flexible print area:

50 x 60 cm
40 x 70 cm
30 x 90 cm (14s 12c models )
double indx: 70 x 100 cm or 90 x 100 cm (14s 12c models)

with small outside diamiter equal to standard SPECTRUM-S models

strong supports for big area printing
best elements used
improved software
improved indexer
closed head carriage
optional servo lift

It is very well tested design, with lots of improvements implemented, AC driven print heads, servo INDEXER rotation system, all features control keypad on every head. Software fully corresponds with machine's hardware possibility. Sequences, Multi print flashing, half index in both directions, fully implemented IR Quartz flashes. Front-rear screen holders gives flexible print area possibilities.

FLASHES suggested to work with SPECTRUM-SL:

CLH 2024 , CLH 2030

IR ELECTRIC Tunnel dryers suggested to work with SPECTRUM-SL:

DEL-3899A , DEL-38114A, DEL-38158A

DEL-48114A, DEL-48158A

SPECTRUM-SL 10s 8c; specification, technical drawing 50 x 60 cm, technical drawing 40 x 70 cm, technical drawing double indx 90 x 70 cm, picture

Print area of 50 x 60 cm (20 x 24") or 40 x 70 cm (16 x 27") or 90 x 70 cm (36 x 27") double index;

SPECTRUM-SL 12s 10c; specification, technical drawing 50 x 50 cm, technical drawing 40 x 70 cm, technical drawing double indx 100 x 70 cm, picture

Print area of 50 x 50 cm (20 x 20") or 40 x 70 cm (16 x 27") or 100 x 70 cm (40 x 27") double index;

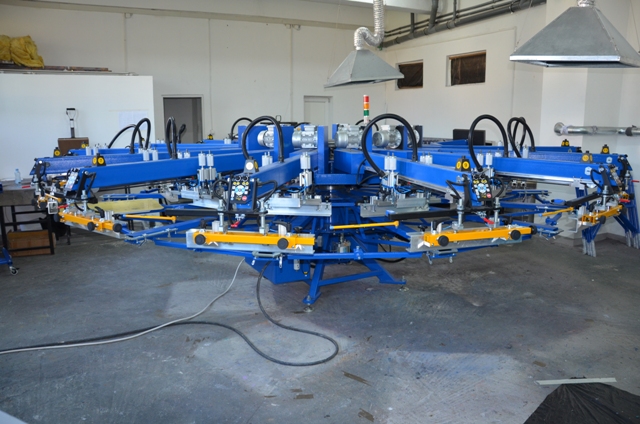

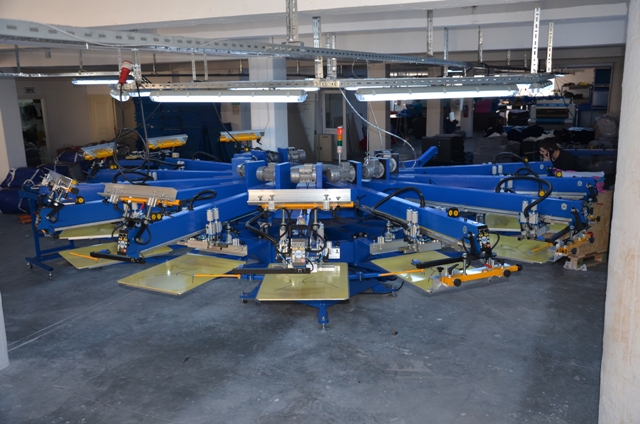

SPECTRUM-SL 14s 12c; specification, technical drawing 50 x 55 cm, technical drawing 40 x 70 cm , 30 x 90 cm, technical drawing double indx 100 x 90 cm, picture

Print area of 50 x 55 cm (20 x 22") or 40 x 70 cm (16 x 27") or 100 x 90 cm (24 x 36") double index;
