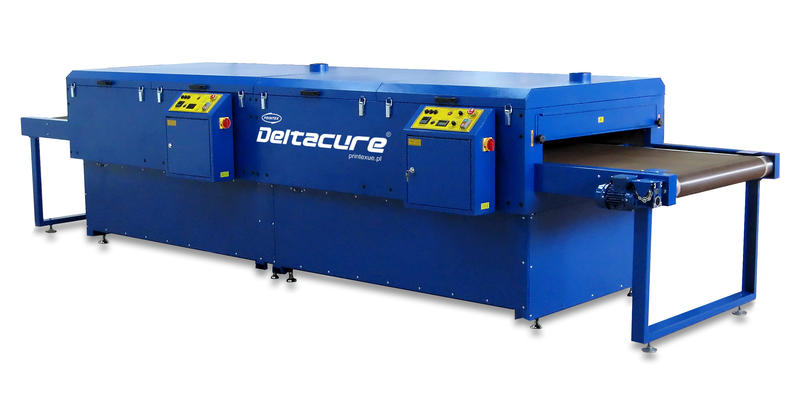

ELECTRIC TUNEL DRYER DEL series

Catalog Print Ask

Standard heat chamber LENGTHS in DEL series dryer: 200 cm (79"), 250 cm (98") - SEGMENTS MIGHT BE CONNECTED

Standard belt WIDTH in DEL series dryer: 61 cm (24"), 96 cm (38"), 122 cm (48"), 152 cm (60")

	`HEAT CHAMBER LENGTH`	`INLET/OUTLET LENGTH`	`BELT WIDTH`	`ELECTRICAL REQUIREMENTS`	`PRODUCTIVITY/ENERGY CONSUMPTION`	`PICTURE`	`TECHNICAL DRAWING`
MODEL
DEL-2479(A) download spec. file	200 cm	50/50 or 75/75 cm	61 cm	8.8 kW	300 pcs/hr 5-6 kWh/h	DOWNLOAD	DOWNLOAD
DEL-2499(A) download spec. file	250 cm	50/50 cm	61 cm	10.5 kW	375 pcs/hr 6-7 kWh/hr	DOWNLOAD	DOWNLOAD
DEL-24158(A) download spec. file	2 x 200 cm	75/75 cm	61 cm	17 kW	600 pcs/hr 10-11 kWh/hr	DOWNLOAD	DOWNLOAD
DEL-3079(A) download spec. file	200 cm	50/50 cm	78 cm	10 kW	380 pcs/h 6 kWh/hr	DOWNLOAD	DOWNLOAD
DEL-3879(A) download spec. file	200 cm	75/75 cm	96 cm	13.5 kW	480 pcs/hr 8-9 kWh/hr	DOWNLOAD	DOWNLOAD
DEL-3899(A) download spec. file	250 cm	50/50 cm	96 cm	16 kW	600 pcs/hr 9-10 kWh/h	DOWNLOAD	DOWNLOAD
DEL-38158(A) download spec. file	2 x 200 cm	75/75 cm	96 cm	27 kW	960 pcs/hr 14-15 kWh/hr	DOWNLOAD	DOWNLOAD
DEL-4899(A) download spec. file	250 cm	120/120 cm	122 cm	20.5 kW	720 pcs/hr 11-12 kWh/hr	DOWNLOAD	DOWNLOAD
DEL-48114(A) download spec. file	290 cm	120/120 cm	122 cm	23 kW	870 pcs/hr 14-15 kWh/hr	DOWNLOAD	DOWNLOAD
DEL-48158(A) download spec. file	2 x 200 cm	120/120 cm	122 cm	33.5 kW	1200 pcs/hr 15-16 kWh/hr	DOWNLOAD	DOWNLOAD
DEL-60158(A) download spec. file	2 x 200 cm	120/120 cm	152 cm	40 kW	1440 pcs/hr 22-24 kWh/hr	DOWNLOAD	DOWNLOAD

The air circulation has key influence on water base and solvent ink curing. Its not necessary for plastizol inks however air flow increase heat capacity and temperature stability. Adjustable airflow divides heat into IR radiation and air convection heat. The ratio between those two forces depends on flow amount. It has great advantage with temperature sensitive substrate printed with high energy plastizol curing i.e.; paper covered with plastizol ink

Cooling panel idea drawing in DEL series dryers: download, CS option

Air flow idea drawing in DEL series dryers: download, A option

Exhaust fan idea drawing in DEL series dryers: download, EF option

Extra safety and signalization idea drawing in DEL series dryers: download, SCR option

The size of the tunnel should be chosen according to printing capacity. Extra margin of production capacity must be kept. Its always better to decide for having margin in width of the tunnel, while its always possible to order extra HEAT CHAMBER to increase production capacity. (Production space is important factor here)

HOW TO CHOOSE THE RIGHT TUNNEL?

WHAT CAN BE CURED WITH PRINTEX TUNNEL?

GAS or ELECRIC?

NEW or SECOND HAND?

PRINTEX TUNNEL - IS IT RIGHT CHOICE?

WHAT IS THE VALUE OF MY EQUIPMENT AFTER AMORTISATION PERIOD?

NEED FINANCING ?

NOTE: Since JULY 2012 we introduce new line of DEL series with improved heat installation, brand name elements.
